Name: CT100 CPE LSZH 75 Ohm CATV coaxial Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : CT Cable

Certification : UL, ETL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : Normally 15 working days

Packaging Details : 500M, 1000M, Wooden Drum, Pallet

Inner Conductor : 0.04"/1.00mm/18AWG BC

Dielectric : 4.6mm 5 cell air spaced PE

Shield 1 : 4.75mm overlapped copper foil

Shield 2 : 16*4*0.12mm bare copper braid wire 55% coverage

Jacket : 6.7±0.15mm LSZH

Jacket Thickness : 0.030"/0.76mm

Contact Now

CT100 CPE LSZH 75 Ohm CATV coaxial Cable NO.7100442



Construction Parameters:
Inner Conductor	0.04"/1.00mm/18AWG BC
Dielectric	4.6mm 5 cell air spaced PE
Shield 1	4.75mm overlapped copper foil
Shield 2	1640.12mm bare copper braid wire 55% coverage
Jacket	6.7±0.15mm LSZH
Jacket Thickness	0.030"/0.76mm
Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 21.9 Ω/km 6.68Ω/1000ft

Capacitance	52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	6.7±0.15mm LSZH

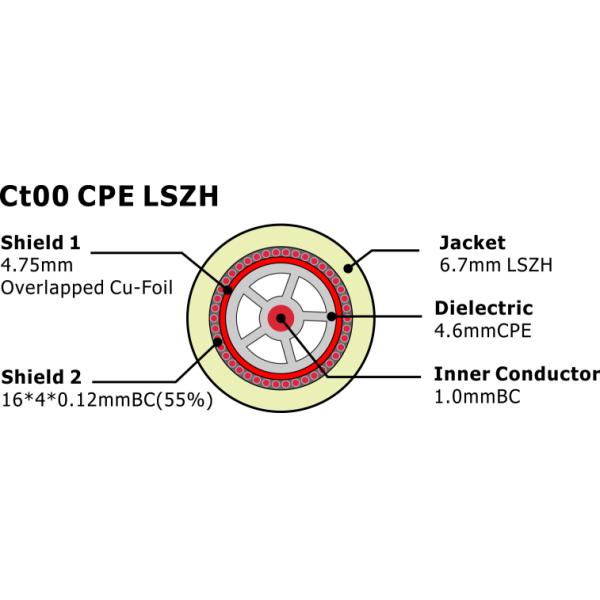

Cross Section














Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5		1.00
10		1.50
50		3.80
100		5.70
200		8.70
300		9.80
470		12.80
600		14.00
1000		19.00

Order Informations:
Marking	HELLOSIGNAL CT100 CPE LSZH CATV COAXIAL CABLE 7100442 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM

CT100 CPE LSZH 75 Ohm CATV coaxial Cable Images
