Name: SAT 703 Inner Conductor Copper LSZH Jacket Coax Cable 75 Ohm CATV Coaxial Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : SAT

Certification : UL, ETL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : Normally 15 working days

Packaging Details : 500M, 1000M, Wooden Drum, Pallet

Inner Conductor : 1.13mm±0.02mm Copper

Dielectric : 4.8mm±0.10 Foamed PE

Shield 1 : Aluminum PET

Shield 2 : CuSn braid wire 45% coverage

Jacket : 6.60±0.10mm LSZH

Contact Now

SAT 703 ZH Coax Cable 75 Ohm CATV coaxial Cable NO.7100506



Construction Parameters:
Inner Conductor	1.13mm±0.02mm Copper
Dielectric	4.8mm±0.10 Foamed PE
Shield 1	Aluminum PET
Shield 2	CuSn braid wire 45% coverage
Jacket	6.60±0.10mm LSZH
Application	For Use in Longer CATV Run Lengths

Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 17.5 Ω/km

Capacitance	54 ±3 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	6.6±0.15mm PVC

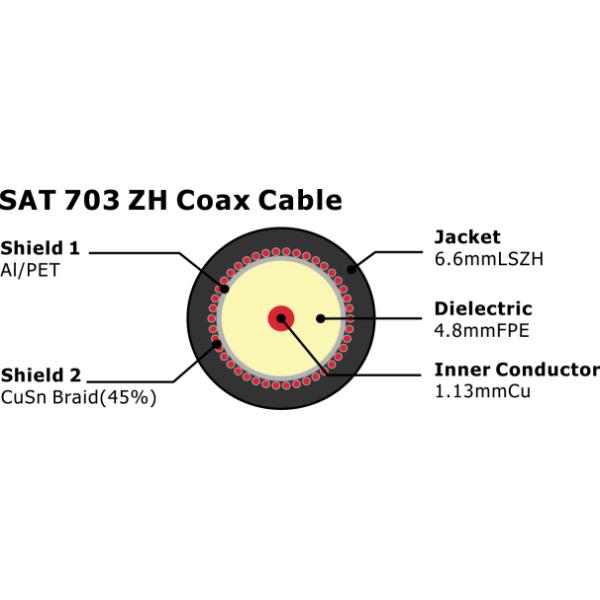

Cross Section














Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5		1.60
10		2.10
30		3.20
50		4.10
200		7.90
300		9.80
470		12.40
862		17.10
1000		18.50
1750		24.90
2150		27.90
2400		29.60
3000		33.40

Order Informations:
Marking	HELLOSIGNAL SAT 703 ZH Coax Cable CATV COAXIAL CABLE 7100506 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
